dcw horizontal low temperature
professional manufacturer of laboratory equipment

dcw series low temperature constant temperature bath is a high-precision constant temperature source with refrigeration and heating. it can be used as a constant temperature source for constant temperature experiments in the water tank in the machine, or connected with other equipment through a hose. it is widely used in research departments such as petroleum, chemical industry, electronic instruments, physics, chemistry, bioengineering, medicine and health, life science, light industry and food, physical property testing and chemical analysis, colleges and universities, quality inspection and production departments of enterprises. it provides users with a field source with controlled heat and cold, uniform and constant temperature when working, and carries out constant temperature tests or tests on test samples or produced products, it can also be used as a heat source or cold source for direct heating or refrigeration and auxiliary heating or refrigeration.

product introduction
related videos
product details
unique advantages
parameter comparison

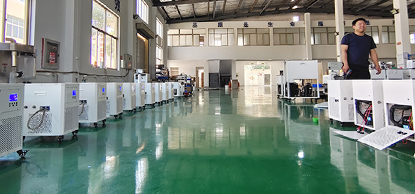

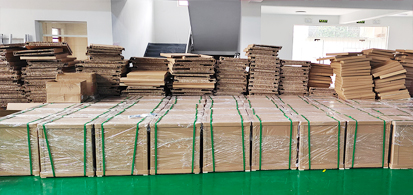

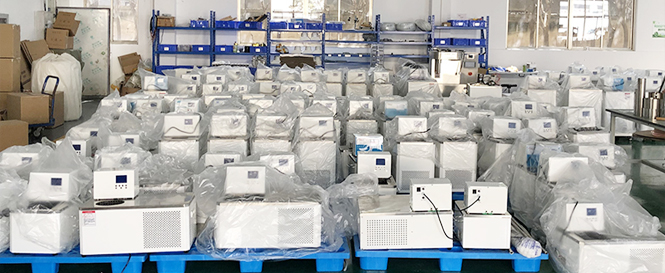

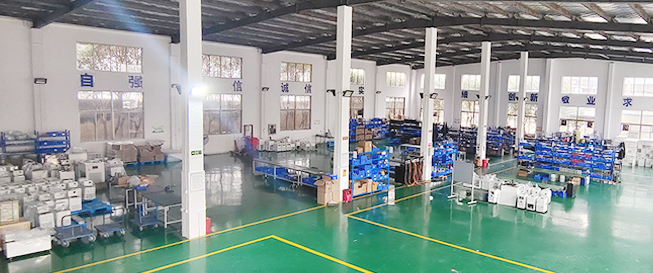

factory appearance
honor and qualification
common problem

see the true chapter for details

tianling's advantages are obvious to all

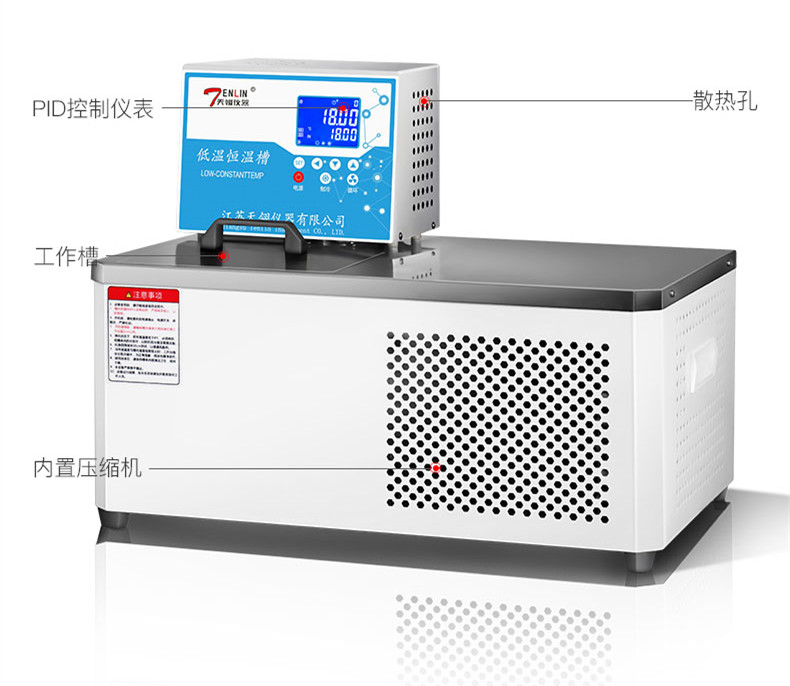

● special software research and development of self-made temperature control technology, equipped with high standard pt100 and all imported electronic components.

● the software system is convenient to correct the error between the displayed temperature and the actual temperature, and the temperature correction resolution is up to 0.01 ℃, so that the displayed temperature value is accurate.

● it has overtemperature protection and overtemperature ringing alarm. the overtemperature alarm temperature can be set, and the load can be cut off automatically in case of overtemperature.

● intelligent software has strong temperature stability. pid can automatically set parameters according to different media, and special users can also manually adjust parameters.

● use software to digitally lock the setting values of the control system to avoid misoperation by irrelevant personnel and ensure the correctness of the experimental process data.

● accurate temperature control makes the temperature in the working tank stable quickly.

● press the "power" key to turn off all functions of the instrument, but the instrument can also display the process of natural temperature rise and fall in the tank.

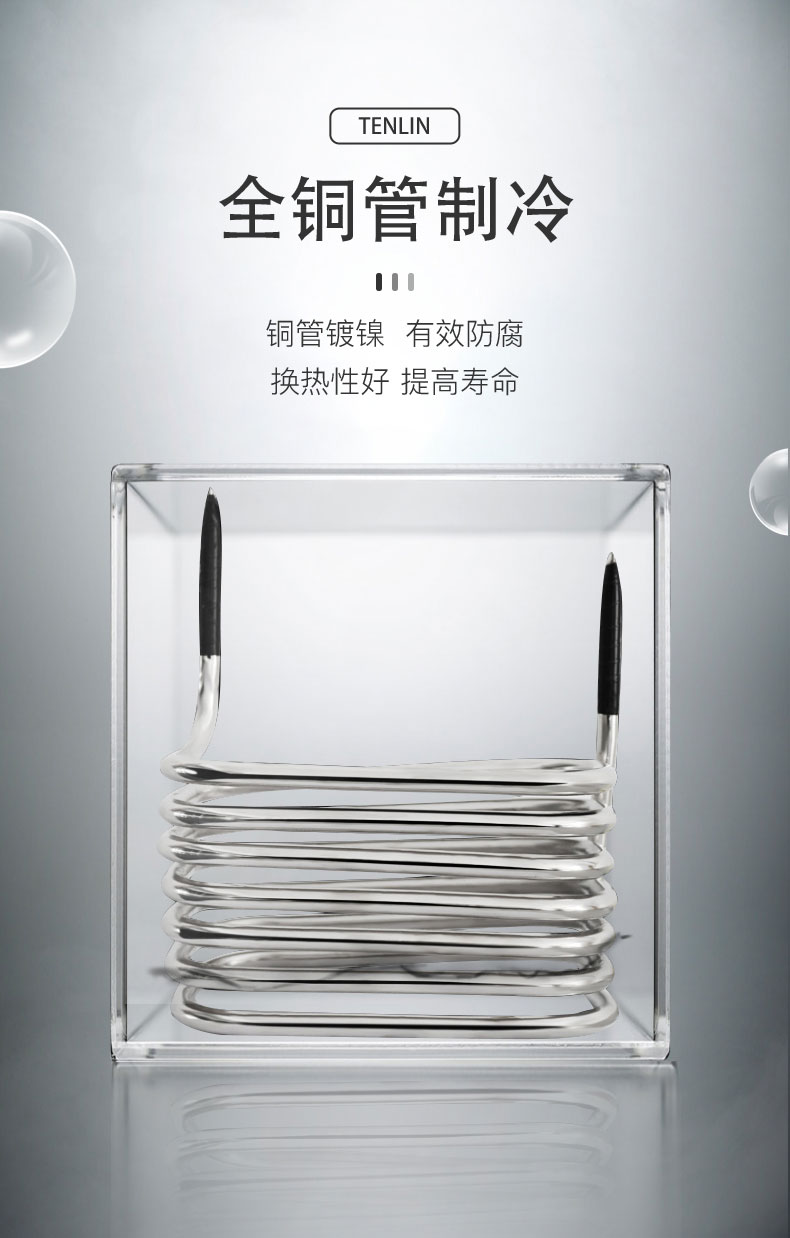

refrigeration system

● high efficiency fully enclosed compressor refrigeration, fast cooling speed, with multiple protections such as overheating and overcurrent.

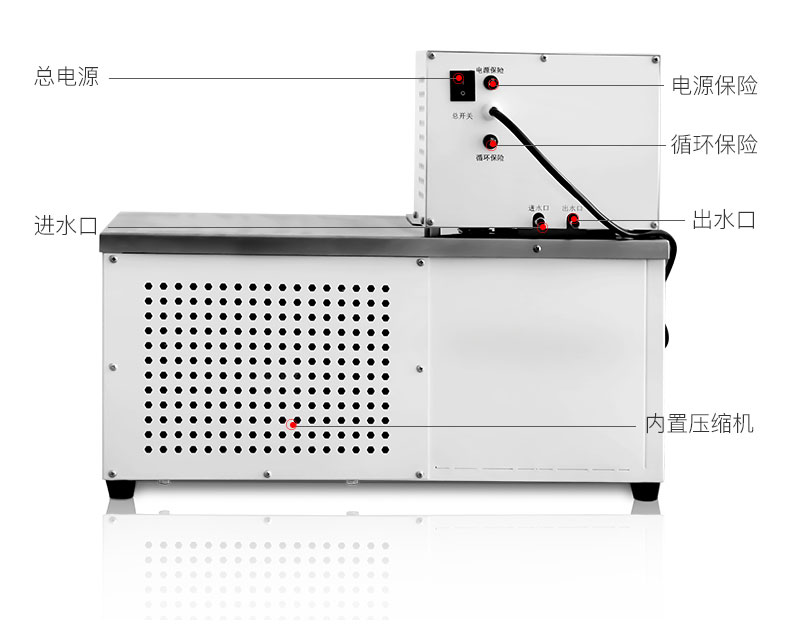

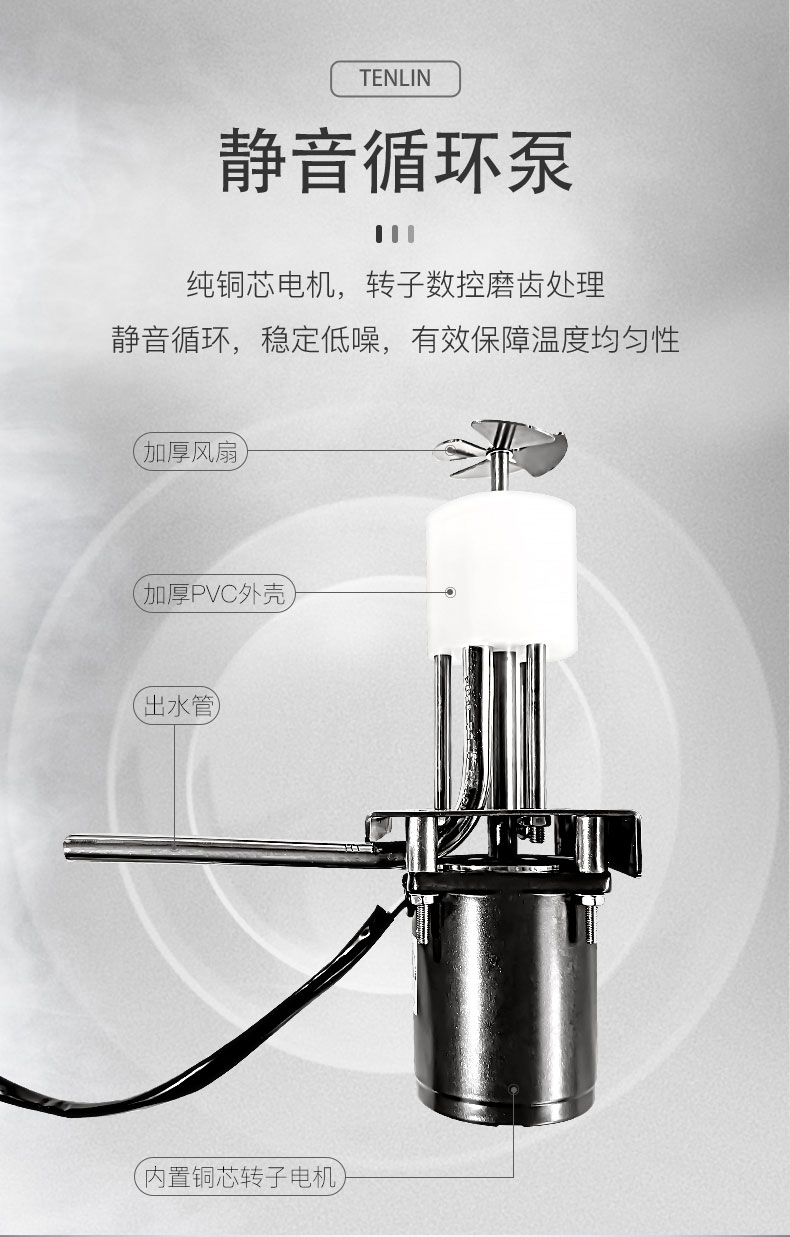

circulatory system

● advanced internal circulation and external circulation system, the internal circulation makes the temperature uniform and stable, and the external circulation pump outputs 6l/min and 13l/min flow constant temperature liquid to establish the second constant temperature field outside the machine, which can also be used as a cold source to cool the experimental container outside the machine.

technical parameter

model	temperature（℃）	resolving power（℃）	volatility（±℃）	volume（l）	slot opening（mm）	groove depth（mm）	flow（l/min）	pwer（kw）	overall dimension（mm）	market price (yuan)
dcw-0506	-5~100	0.01	0.05	6	180*160	150	6	0.8	580380460	8000
dcw-1006	-10~100	0.01	0.05	6	180*160	150	6	0.9	650400520	8600
dcw-2006	-20~100	0.01	0.05	6	180*160	150	6	1.0	650400520	9400
dcw-3006	-30~100	0.01	0.05	6	180*160	150	6	1.5	650400520	12500
dcw-4006	-40~100	0.01	0.05	6	180*160	150	6	2.1	600430720	21500
dcw-0508	-5~100	0.01	0.05	8	250*160	140	6	1.3	650400520	8800
dcw-1008	-10~100	0.01	0.05	8	250*160	140	6	1.5	650400520	9400
dcw-2008	-20~100	0.01	0.05	8	250*160	140	6	1.8	650400520	10200
dcw-3008	-30~100	0.01	0.05	8	250*160	140	6	2.0	650400520	13100
dcw-4008	-40~100	0.01	0.05	8	250*160	140	6	2.1	600430720	23800
dcw-0510	-5~100	0.01	0.05	10	180*160	200	6	1.3	650400520	9500
dcw-1010	-10~100	0.01	0.05	10	180*160	200	6	1.5	650400520	10100
dcw-2010	-20~100	0.01	0.05	10	180*160	200	6	1.8	650400520	10900
dcw-3010	-30~100	0.01	0.05	10	180*160	200	6	2.0	650400520	13700
dcw-4010	-40~100	0.01	0.05	10	180*160	200	6	2.1	600430720	29500
dcw-0515	-5~100	0.01	0.05	15	250*160	200	6	2.1	650400520	11200
dcw-1015	-10~100	0.01	0.05	15	250*160	200	6	2.2	650400520	12500
dcw-2015	-20~100	0.01	0.05	15	250*160	200	6	2.3	650400520	14500
dcw-3015	-30~100	0.01	0.05	15	250*160	200	6	2.4	650400520	19700
dcw-4015	-40~100	0.01	0.05	15	250*160	200	6	2.5	600430720	32800
dcw-0520	-5~100	0.01	0.05	20	250*160	300	6	2.1	720395610	15200
dcw-1020	-10~100	0.01	0.05	20	250*160	300	6	2.2	720395610	16500
dcw-2020	-20~100	0.01	0.05	20	250*160	300	6	2.3	870520700	18700
dcw-3020	-30~100	0.01	0.05	20	250*160	300	6	2.5	870520700	30500
dcw-4020	-40~100	0.01	0.05	20	250*160	300	6	2.7	870520700	37500
dcw-0530	-5~100	0.01	0.05	30	330*280	230	13	2.3	870520700	19800
dcw-1030	-10~100	0.01	0.05	30	330*280	230	13	2.4	870520700	21300
dcw-2030	-20~100	0.01	0.05	30	330*280	230	13	2.4	870520700	25500
dcw-3030	-30~100	0.01	0.05	30	330*280	230	13	2.5	870520700	31800
dcw-4030	-40~100	0.01	0.05	30	330*280	230	13	2.7	870520700	41000
